If we want to know what is going on with crime in Phoenix, we can take a look at the Crime Data from the data portal. This file contains incidents reported to the Phoenix Police Department. The city updates the file at 11am every day and it contains data beginning November 2015 up to 7 days before the posting date. With these data we can examine basic trends in crime in Phoenix.
This page will focus on the following questions:
To examine these questions, we will use data that has pre-processed from the data portal. For details, see the Pre-Processing Crime Data for Phoenix page.
To get going, we will load all the libraries we need. The code to generate everything you see here is hidden (to reduce clutter). But, if you want to see “how we get there”, just click the “Show” button on the right.
Next, we will load the data. These files are available in the data folder for the repository.
# clear workspace
rm( list = ls() )
# load libraries
library( dplyr ) # used for wrangling the data
library( tidyr ) # used for wrangling the data
library( ggplot2 ) # for plotting
library( scales ) # for formatting the text
library( forecast ) # for working with time series data
library( here ) # for referencing the local directory
# define the objects
crimeData <- readRDS( here( "data/crimeData.rds" ) )
crimesByDay <- readRDS( here( "data/crimesByDay.rds" ) )
crimesByMonth <- readRDS( here( "data/crimesByMonth.rds" ) )
crimesByYear <- readRDS( here( "data/crimesByYear.rds" ) )
crimeRatesMonth <- readRDS( here( "data/crimeRatesMonth.rds" ) )
crimeRatesYear <- readRDS( here( "data/crimeRatesYear.rds" ) )
crimeRatesMonthType <- readRDS( here( "data/crimeRatesMonthType.rds" ) )
Let’s pull the most recent data for crime incidents from the site.
The data are reported as UCR crime classifications and have geographic information (block address, zip) as well as the date and time of the incident. As of November, 2024, there were 554,924 crime incidents with complete data from 11/2015 to within a week of the current date.
Let’s start by looking at the daily counts of crime from when the data are first available (i.e. November 2015) and look at the trend up to the current date.
crimesByDay %>%
ggplot( aes( days, counts ) ) +
geom_line( color = "grey80" ) +
geom_point( alpha = 1/5, color = "black" ) +
labs( x = "", y = "Counts of Crime per Day" ) +
ggtitle( "Daily Crime Counts in Phoenix, AZ" ) +
geom_smooth( color = "#751913", span = 0.2 ) +
scale_y_continuous( label = comma ) +
theme_minimal()
The daily count view is useful, but it might help if we make two changes:
First, we should break it down by year and month. This adjustment corrects for the seasonality of crime. One way to show this seasonal variation in crime incidents is to plot the monthly incidents for each year. Note that for 2024, the line stops the month before November, as that is the last month of complete data from the portal.
Second, we should adjust the counts to be rates of incidents of crime. This will adjust for differences in the population of Phoenix from 2016-2024. The crime incident rate is calculated as the count of crimes divided by the population size, then multiplied by 100,000. This then tells us how many incidents of crime occur per 100,000 people in the population. The Pre-Processing Crime Data for Phoenix page goes into detail on how these rates are calculated.
# create a time series object for plotting
monthlyCrimeRateByYear <- ts(
matrix( as.matrix( crimeRatesMonth ), ncol = 1 ),
start=c( 2016, 1 ),
end=c( as.numeric( tail( names( crimeRatesMonth ), n=1 ) ), 12 ), frequency=12
)
# render the plot
monthlyCrimeRateByYear %>%
ggseasonplot(
year.labels = TRUE,
continuous = FALSE,
main = "Plot of Monthly Crime Rate by Years for Phoenix, AZ",
col = colorRampPalette(c("#f7968f", "#c41104"))( dim( crimeRatesMonth )[2] ) ) +
scale_y_continuous( label = comma ) +
geom_line( size = 1.2 ) +
theme_minimal()
The plot showing the monthly rates by year helps us visualize the data better. Note that the current year, 2024, is missing a label because the year is incomplete.
crimeRatesYear %>%
# drop the current year because it distorts the graph
filter( year != as.numeric( format( Sys.Date(), format="%Y" ) ) ) %>%
ggplot( aes( year, rates, group = 1 ) ) +
geom_line( color = "grey20", size = 1.2 ) +
geom_point( color = "firebrick", size = 4 ) +
labs( x = "", y = "Rate of Crime per Year" ) +
ggtitle( "Plot of Crime Rate by Year in Phoenix, AZ" ) +
scale_y_continuous( label = comma ) +
theme_minimal()
# Fit an ARIMA model with seasonal components
fit <- auto.arima(
monthlyCrimeRateByYear,
seasonal = TRUE,
stepwise = FALSE,
approximation = FALSE
)
# Forecast the next 12 months
forecasted_values <- forecast( fit, h = 12 )
# Convert time series to a data frame for ggplot
actual_data <- data.frame(
ds = time( monthlyCrimeRateByYear ),
y = as.numeric( monthlyCrimeRateByYear )
)
forecast_data <- data.frame(
ds = time( forecasted_values$mean ),
yhat = as.numeric( forecasted_values$mean ),
lower = as.numeric( forecasted_values$lower[,2] ),
upper = as.numeric( forecasted_values$upper[,2] )
)
# Plot the actual data and forecast using ggplot2
ggplot() +
geom_line( data = actual_data, aes(x = ds, y = y), color = "grey40") + # Actual data
geom_line( data = forecast_data, aes(x = ds, y = yhat), color = "#c41104", linetype = "dashed") + # Forecasted data
geom_ribbon(data = forecast_data, aes(x = ds, ymin = lower, ymax = upper), alpha = 0.2) + # Confidence interval
labs( title = "Plot of Monthly Crime Rate by Years for Phoenix, AZ with Predicted Trend",
x = "Date",
y = "Crime Count" ) +
theme_minimal()

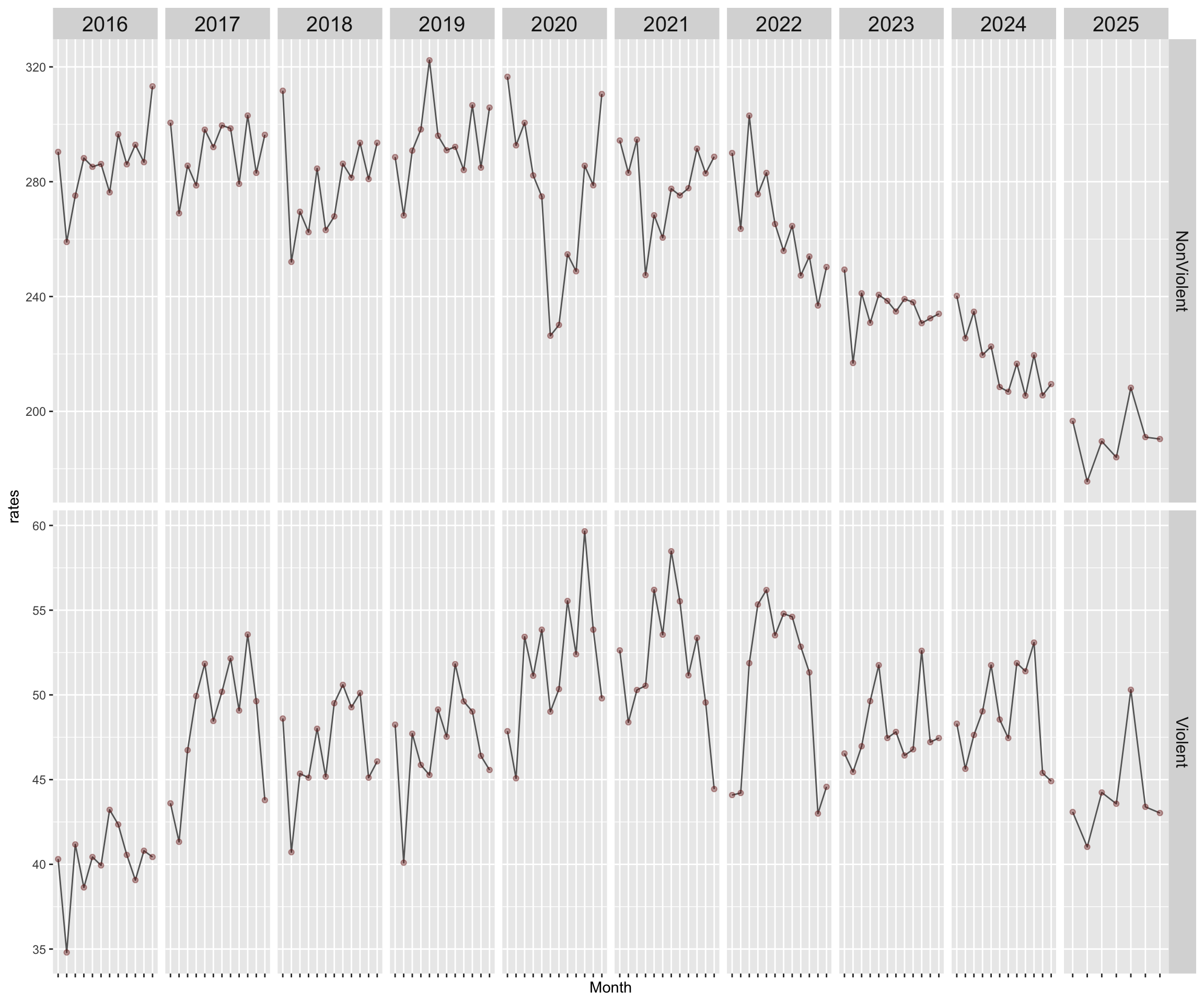

crimeRatesMonthType %>%
ggplot( aes( month, rates, group = 1 ) ) +
geom_line( color = "grey40" ) +
geom_point( alpha = 2/5, color = "#751913" ) +
facet_grid( crime.type ~ year, scales="free" ) +
theme( axis.text.x=element_blank(),
strip.text.x = element_text( size = 15 ),
strip.text.y = element_text( size = 12 ) ) +
xlab( "Month" )
