As discussed in the Bipartite Graphs & Two-Mode Networks chapter of the textbook, bipartite graphs are useful for operationalizing contexts where nodes come from two separate classes. In contrast to one-mode networks, or unipartite graphs, where edges can be incident within a particular node/vertex set, in two-mode or bipartite graphs there are two partitions of nodes (called modes), and edges only occur between these partitions (i.e. not within).
This tutorial examines various properties of bipartite graphs (e.g. density, degree centrality) and shows how to work with these structures in R using the network and sna packages.
To begin, let’s build the example bipartite graph from the Bipartite Graphs & Two-Mode Networks chapter:
# create the example network
bipartite_example <- rbind(
c( 1,1,0,0,0 ),
c( 1,0,0,0,0 ),
c( 1,1,0,0,0 ),
c( 0,1,1,1,1 ),
c( 0,0,1,0,0 ),
c( 0,0,1,0,1 ) )
# assign names to the rows
rownames( bipartite_example ) <- c( "A","B","C","D","E","F" )
# assign names to the columns
colnames( bipartite_example ) <- c( "1","2","3","4","5" )
# print out the object
bipartite_example 1 2 3 4 5
A 1 1 0 0 0
B 1 0 0 0 0
C 1 1 0 0 0
D 0 1 1 1 1
E 0 0 1 0 0
F 0 0 1 0 1As we can see, the matrix has 6 rows and 5 columns. So, the order of the matrix is 6 x 5.
network PackageWe can create an object of class network by using the as.network() function in the network package. First, take a look at the help for the as.network() function, paying particular attention to the bipartite= argument.
# call the network package
library( network )
# pull up the help for the as.network() function
?as.networkIn looking through the help file for the as.network() function, we see that the bipartite= argument says that this argument allows the count of the number of actors in the bipartite network. A bipartite adjacency matrix has order NxM, where N represents the number of rows (e.g. actors) and M represents the number of columns (e.g. events). In the bipartite= argument, we can specify the count of actors as N.
For example:
# identify the number of actors in the example
N <- dim( bipartite_example )[1]
# create a network object
bipartite_example_net <- as.network(
bipartite_example, # here is our matrix
bipartite = N # define the number of actors
)
# there 11 vertices, 6 are bipartite (in the first mode), and 12 edges
bipartite_example_net Network attributes:
vertices = 11
directed = FALSE
hyper = FALSE
loops = FALSE
multiple = FALSE
bipartite = 6
total edges= 12
missing edges= 0
non-missing edges= 12
Vertex attribute names:
vertex.names

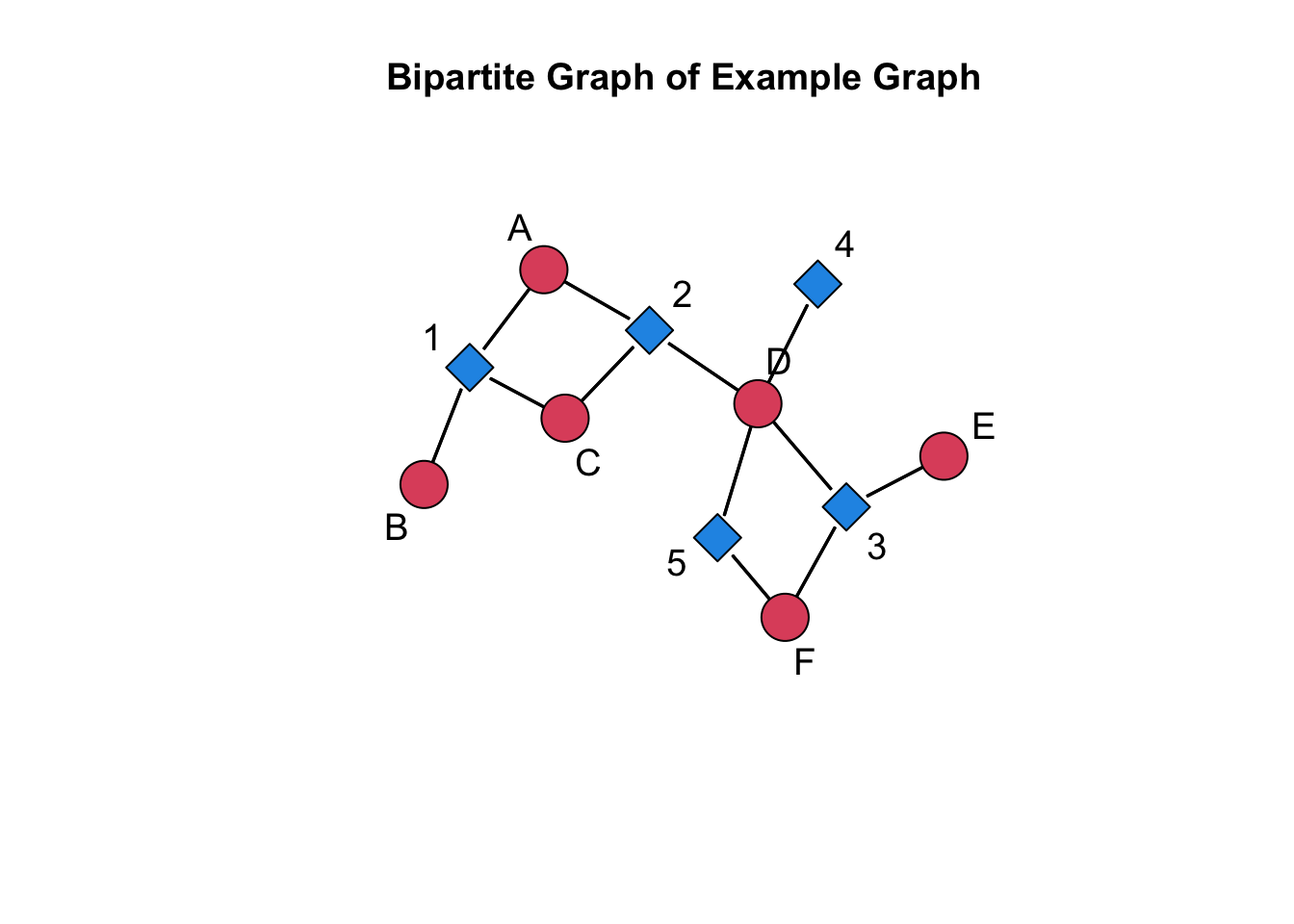

No edge attributesgplot() in the sna PackageNow that our object is created, we can take a look at a plot of the network using the gplot() function. Before we do so, let’s take a look at a few changes we need to make. First, note that the gplot() function reads the labels by starting with the names in the first mode, then the names in the second mode. We can see this by printing the vertex labels the function assigns with the network.vertex.names() function.
# look how it reads the labels
network.vertex.names( bipartite_example_net ) [1] "A" "B" "C" "D" "E" "F" "1" "2" "3" "4" "5"We can see that it first labels the actor nodes (i.e. A, B, C, D, E, and F) and then names the event nodes (i.e. 1, 2, 3, 4, 5).
Second, we need to tell the gplot() function that the network has two modes, not one mode. We do this using the gmode= argument, which automatically changes the colors and the shapes of the nodes when we specify that the graph is twomode. Third, we need to set the usearrows= argument to FALSE so that the arrowheads are turned off. (Note that there are directed two-mode networks in which you would use arrowheads, but we will skip that for now). Let’s check it out:
# load the sna library to get the gplot() function
library( sna )
# set the seed to reproduce the plot layout
set.seed( 507 )

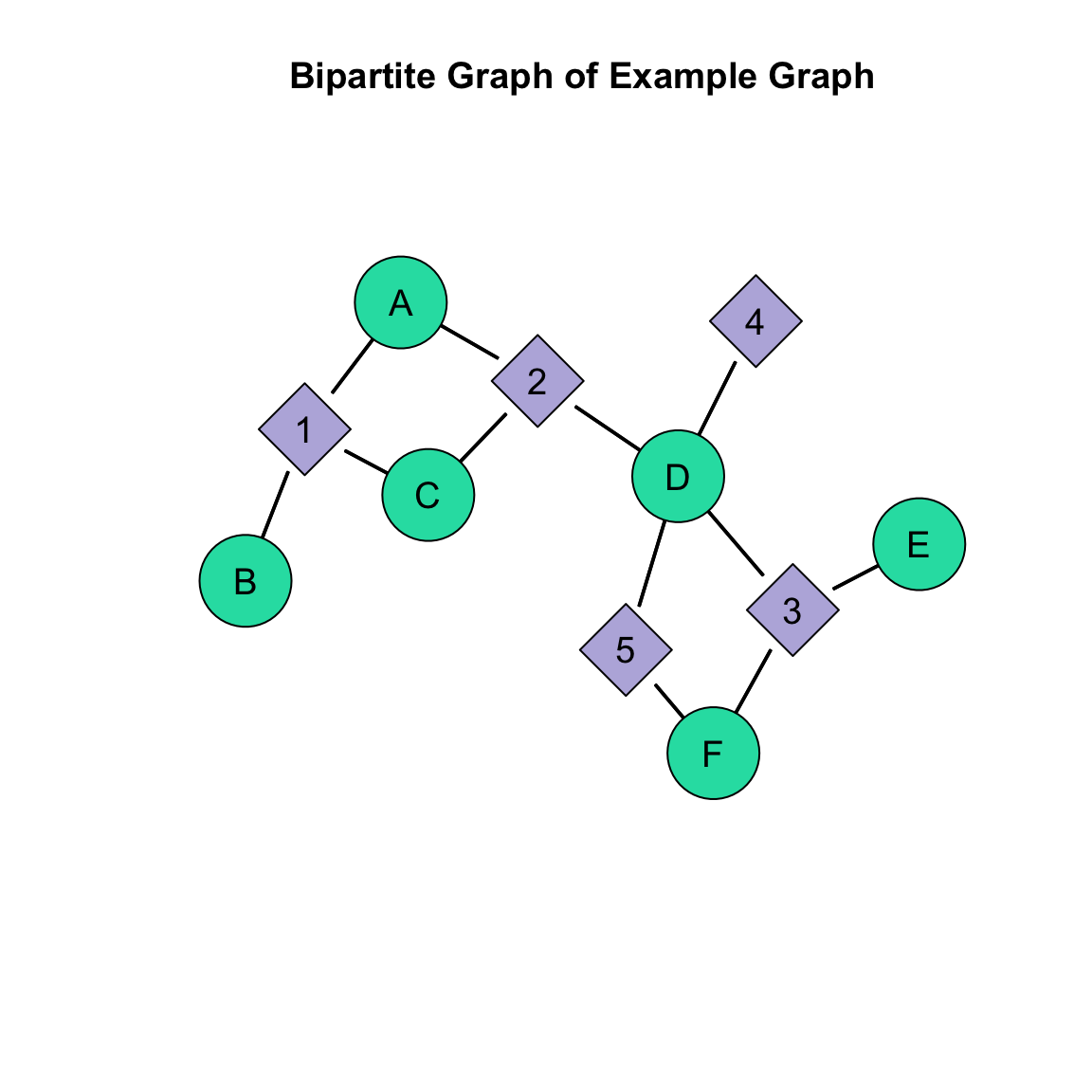

# execute the plot
gplot(
bipartite_example_net, # our network to plot
label = network.vertex.names( bipartite_example_net ), # the labels we want
gmode = "twomode", # indicate it is two modes
usearrows = FALSE, # turn off the arrowheads
vertex.cex=2, # size the nodes
label.cex=1.2, # size the labels
main="Bipartite Graph of Example Graph" # add a title
)
As we saw in the Basics of Network Visualization tutorial, there are a lot of options that help us convey important information about a network. When we are working with a two mode network object, we need to make sure that whatever information we pass to the nodes matches the order of the nodes in the network. For example, we saw above that the network first labels the actor nodes and then labels the event nodes. If we wanted to choose a different set of colors, for example, using the vertex.col= argument, then we would want a set of colors for the actors and a set of colors for the events. Then, we would want these combined into a single object. Let’s do that here to demonstrate:
# identify the number of actors in the example
N <- dim( bipartite_example )[1]
# identify the number of events in the example
M <- dim( bipartite_example )[2]
# set the actor colors
actor.col <- rep( "#1fdeb1", N )
# set the event colors
event.col <- rep( "#bab4de", M )
# now combine them into a single vector of colors
node_col <- c( actor.col, event.col )
# take a look
node_col [1] "#1fdeb1" "#1fdeb1" "#1fdeb1" "#1fdeb1" "#1fdeb1" "#1fdeb1" "#bab4de"
[8] "#bab4de" "#bab4de" "#bab4de" "#bab4de"Now that we have a set of colors that match the order of the nodes, we can pass it into the gplot() function using the vertex.col= argument:

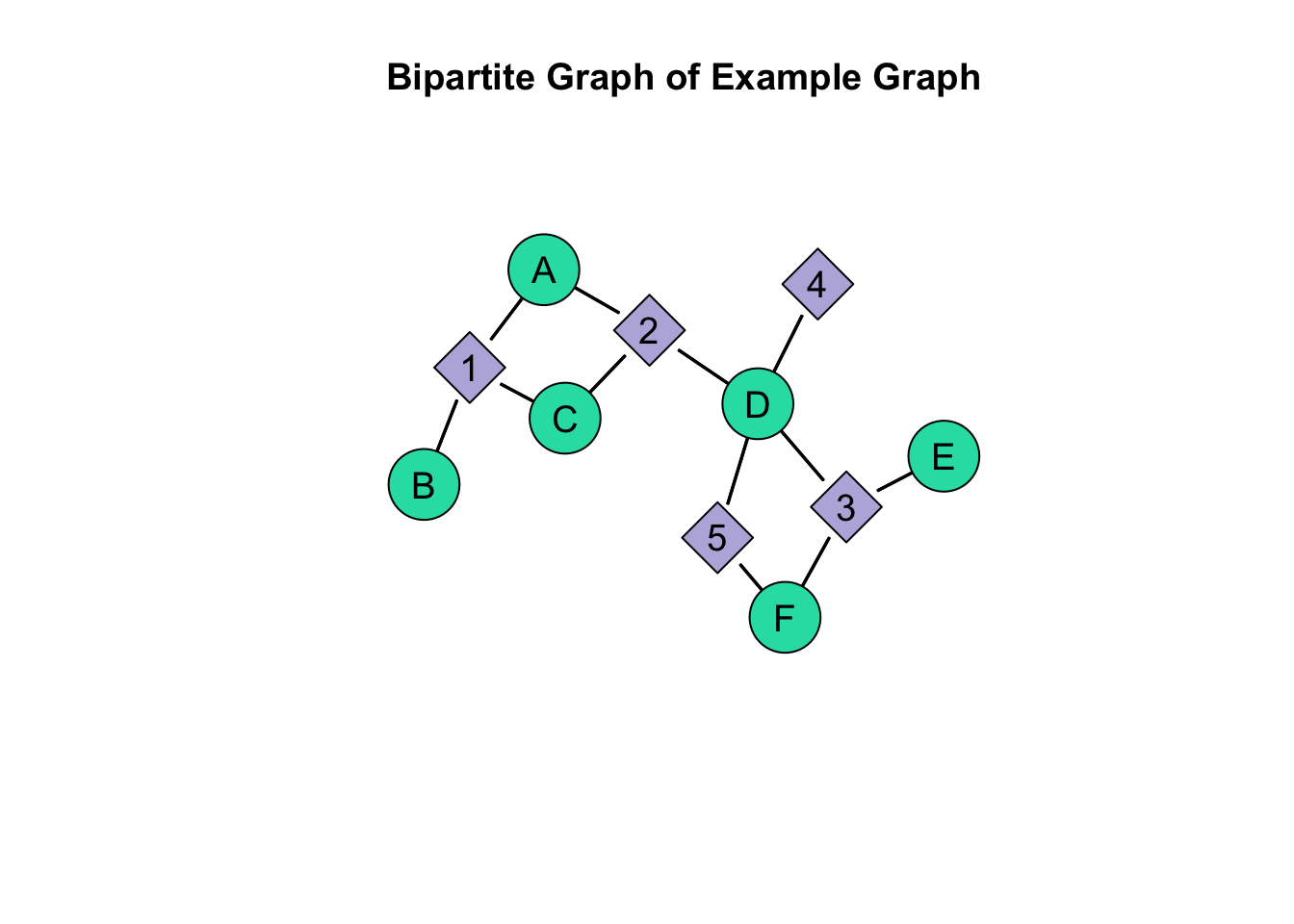

# set the seed to reproduce the plot layout
set.seed( 507 )
# execute the plot
gplot(
bipartite_example_net, # our network to plot
label = network.vertex.names( bipartite_example_net ), # the labels we want
gmode = "twomode", # indicate it is two modes
usearrows = FALSE, # turn off the arrowheads
vertex.cex = 3, # size the nodes
label.cex = 1.2, # size the labels
label.pos = 5, # position the labels on the nodes
main="Bipartite Graph of Example Graph", # add a title
# here is the addition to what we had above:
vertex.col = node_col # add the colors
)
This setup, where we define the actor properties and event properties and combine them into a vector, will be used for any attribute we want to attach to the nodes. We will work through more examples below illustrating this point.
As reviewed in the Bipartite Graphs & Two-Mode Networks chapter of the textbook, there are multiple structural properties of bipartite graphs that we can examine to help us describe the network.
The density of a bipartite graph is the number of observed edges in the graph, L, divided by the number of nodes in the first mode, N, multiplied by the number of nodes in the second mode, M. That is:
\[\frac{L}{N \times M}\]
In other words, the density of the graph is the number of edges we observed divided by the maximum number of possible edges in the graph. We can calculate this using the sum() and dim() functions.
# identify the number of edges in the graph
L <- sum( bipartite_example )
# identify the number of actors in the example
N <- dim( bipartite_example )[1]
# identify the number of events in the example
M <- dim( bipartite_example )[2]
# calculate the density
density_bipartite_example <- L / ( N * M )
# check it out
density_bipartite_example[1] 0.4What is the interpretation of the density?
For a bipartite graph there are two degree distributions:
The distribution of ties in the first mode
The distribution of ties in the second mode
We can calculate the degree centrality scores for each node in each corresponding vertex set by taking the row sum for N nodes in the first mode and taking the column sum for M nodes in the second mode. We can do so using the rowSums() and colSums() functions, respectively.
# raw scores for actors
actor_deg <- rowSums( bipartite_example )
actor_degA B C D E F
2 1 2 4 1 2 # raw scores for events
event_deg <- colSums( bipartite_example )
event_deg1 2 3 4 5
3 3 3 1 2 How should we interpret the centrality scores for each node set? Well, it is a bit difficult when just looking at it here. So, we can calculate a summary statistic, such as the mean, to evaluate the distribution of centrality scores for each node set.
As before, we could examine the central tendency by examining the mean degree for each node/vertex set. We take the sum of the edges, \(L\) and:
for the first node set we divide by \(\frac{L}{N}\), the number of nodes in that set.
for the second node set we divide by \(\frac{L}{M}\), the number of nodes in that set.
# mean degree for actors
mean_actor_deg <- L / N
# mean degree for events
mean_event_deg <- L / M
# an alternative is to just use the mean() function with the degree data
mean( actor_deg )[1] 2mean( event_deg )[1] 2.4How should we interpret the mean centrality score for each node set? The mean for the actor node set indicates that, on average, each node has 2 ties. The mean for the event node set indicates that, on average, each event has 2.4 ties.
Degree centrality scores for each node/vertex set not only reflects each node’s connectivity to nodes in the other set, but also depend on the size of that set. As a result, larger networks will have a higher maximum possible degree centrality value. Solution?
Standardize!!!
As we saw for unipartite graphs, we can adjust the raw degree centrality scores by taking into account the size of the graph. In a bipartite graph, we can standardize, or normalize, by dividing the raw centrality scores by the number of nodes in the opposite vertex set. That is, for the centrality scores in the first mode we divide by M and for the centrality scores in the second mode we divide by N.
# standardized score for actors
actor_deg / M A B C D E F
0.4 0.2 0.4 0.8 0.2 0.4 # standardized score for events
event_deg / N 1 2 3 4 5
0.5000000 0.5000000 0.5000000 0.1666667 0.3333333 In networks with lots of nodes, this information might be useful for visualizing differences in nodes degree centrality. Let’s create a plot with the standardized scores where larger degree centrality influences the size of the nodes. As we did above, we will want to create a single object that has these sizes. We can do this using the c() function.
# define the standardized scores for actors
actor_size <- actor_deg / M
# define the standardized scores for events
event_size <- event_deg / N
# combine these to use in the plot
v_size <- c( actor_size, event_size )

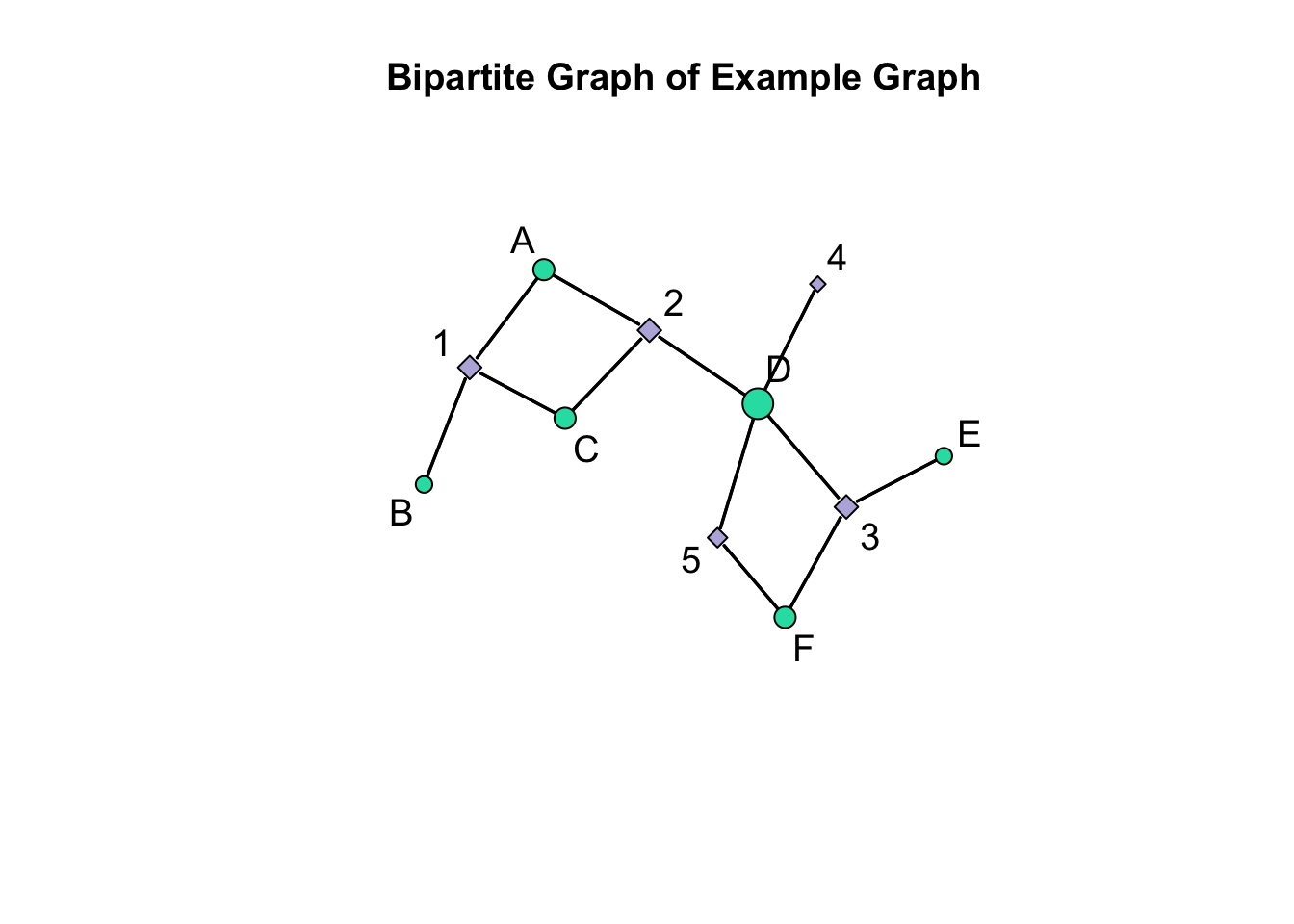

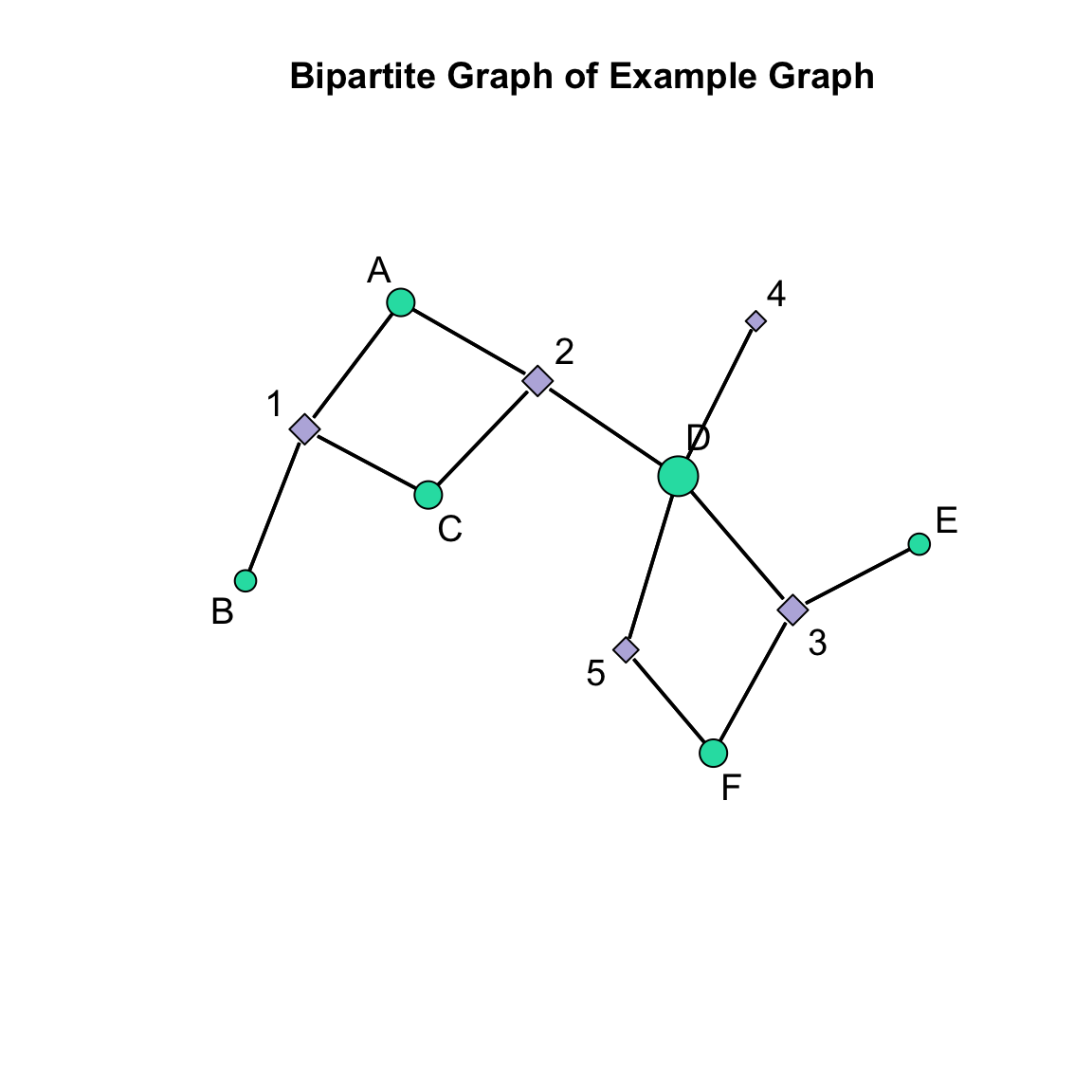

# set the seed to reproduce the plot layout
set.seed( 507 )
# execute the plot
gplot(
bipartite_example_net, # our network to plot
label = network.vertex.names( bipartite_example_net ), # the labels we want
gmode = "twomode", # indicate it is two modes
usearrows = FALSE, # turn off the arrowheads
label.cex = 1.2, # size the labels
main = "Bipartite Graph of Example Graph", # add a title
vertex.col = node_col, # add the colors
# here is the addition to what we had above:
vertex.cex = v_size + 0.5 # set the size (add 0.5 so it is not too small)
)
Now, let’s work with a real example. As discussed in the Bipartite Graphs & Two-Mode Networks chapter, Young and Ready (2015) examined how police officers develop cognitive frames about the usefulness of body-worn cameras. They argued that police officers’ views of body-worn cameras influence whether they use their cameras in incidents and that these views partly result from sharing incidents with other officers where they exchanged views about the legitimacy of body-worn cameras.
Let’s import the matrix, create a network, assign an attribute, and plot it. Then, we will work through the structural properties.
# set the location for the file
loc <- "https://github.com/jacobtnyoung/snaca-r/raw/main/data/data-officer-events-adj.csv"
# read in the .csv file
cam_mat <- as.matrix(
read.csv(
loc,
as.is = TRUE,
header = TRUE,
row.names = 1
)
)
# identify the number of police officers
N <- dim( cam_mat )[1]
# identify the number of incidents
M <- dim( cam_mat )[2]Now, we want to coerce this to an object of class network.
# create the network object
officer_event_net <- as.network(
cam_mat,
bipartite = N
)
# take a look
officer_event_net Network attributes:
vertices = 234
directed = FALSE
hyper = FALSE
loops = FALSE
multiple = FALSE
bipartite = 81
total edges= 346
missing edges= 0
non-missing edges= 346
Vertex attribute names:
vertex.names
No edge attributesNow, let’s create a plot of the network. To aid in visualization, we need to create a variable indicating whether the officer was in the treatment (i.e. received a body-cam) or control group. If you look at the network.vertex.names( officer_event_net ) object, you will see that the officer ids start with “C” or “T”. The “C” prefix indicates a control officer and a “T” prefix indicates a treatment officer. The first 44 ids are for control officers and the subsequent 37 ids are for treatment officers. The remaining 153 correspond to events. We can use this info to create a variable that indicates treatment status.
We will use this information to create an attribute. To do so, we will use the rep() function which repeats a sequence of numbers of characters.
# create a variable using the information in the ids
status <- c(
rep( "Control", 44 ), # repeat "Control" 44 times because there are 44 control officers
rep( "Treatment", 37 ), # repeat "Treatment" 37 times because there are 37 control officers
rep( "Incident", 153 ) # repeat "Incident" 153 times because there are 153 incident
)
# create colors for the plot
vcol <- status
vcol[ status == "Control" ] <- "green" # make controls green
vcol[ status == "Treatment" ] <- "red" # make treatment group red
vcol[ status == "Incident" ] <- "white" # make events white
# create the shapes
vsides <- rep( 0, length( status ) )
vsides[ status == "Control" ] <- 3 # make controls triangles
vsides[ status == "Treatment" ] <- 4 # make treatment group squares
vsides[ status == "Incident" ] <- 50 # make events circles
# create the node sizes
nsize <- c(
rep( 2, N ), # sizes for officers
rep( 1.2, M ) # size for the events

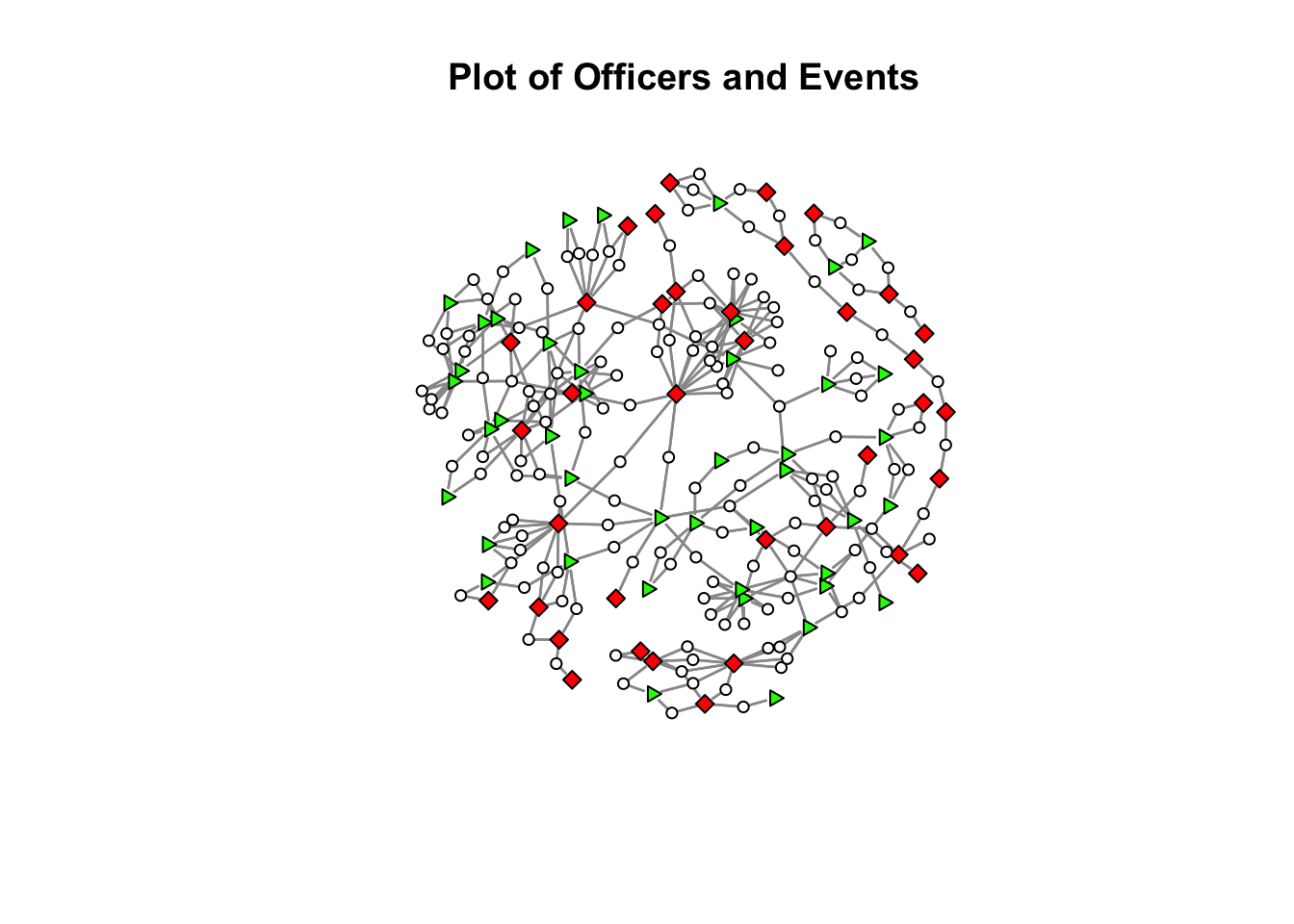

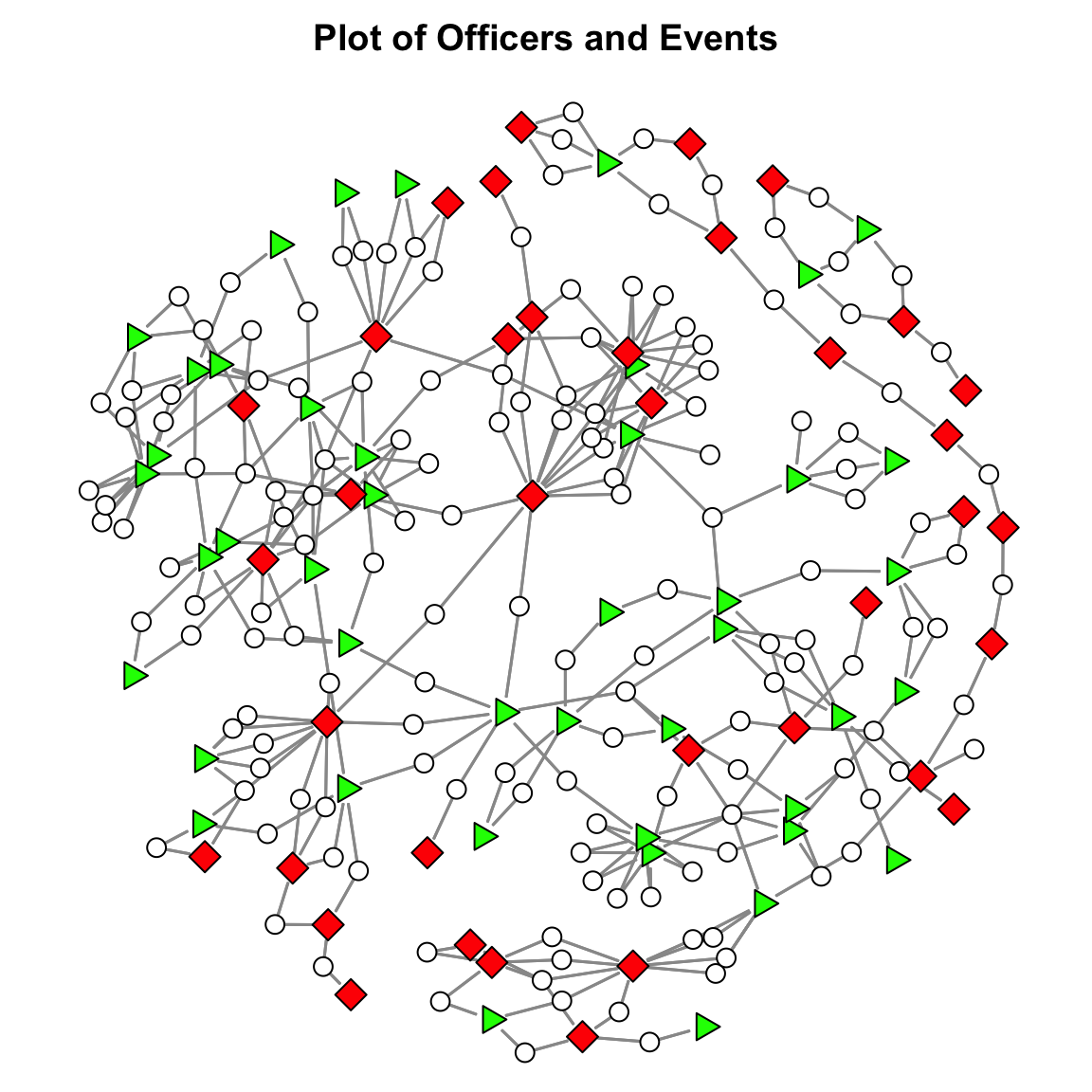

) Now, we can plot this using the gplot() function.
# set the seed for the plot
set.seed( 507 )
# plot it
gplot(
officer_event_net,
gmode="twomode",
usearrows=FALSE,
displayisolates=FALSE,
vertex.col=vcol,
vertex.sides=vsides,
edge.col="grey60",
edge.lwd=1.2,
vertex.cex = nsize,
main = "Plot of Officers and Events"
)
Now, let’s take a look at several properties of the graph: density, degree centrality, and mean degree centrality.
Remember, the density is the total number of edges divided by N x M.
# identify the number of edges in the graph
L <- sum( cam_mat )
L / ( N * M )[1] 0.02791899The density for the this network is 0.03. What is the interpretation of the density for this network?
Now, let’s take a look at the degree distributions.
# raw scores for officers
officer_deg <- rowSums( cam_mat )
# raw scores for incidents
incident_deg <- colSums( cam_mat )Now, we can examine the central tendency by examining the mean degree for each node/vertex set. We take the sum of the edges, \(L\) and:
for the first node set we divide by \(\frac{L}{N}\), the number of nodes in that set.
for the second node set we divide by \(\frac{L}{M}\), the number of nodes in that set.
# mean degree for officers
mean_officer_deg <- L / N
mean_officer_deg[1] 4.271605# mean degree for incidents
mean_incident_deg <- L / M
mean_incident_deg[1] 2.261438# an alternative is to just use the mean() function with the degree data
mean( mean_officer_deg )[1] 4.271605mean( mean_incident_deg )[1] 2.261438What is the interpretation of the mean degree for each node set?
bipartite argument in the as.network() function? How does it relate to the dimensions of the adjacency matrix?gmode argument in the gplot() function. What happens when it is set to "twomode"?This tutorial explored bipartite graphs, or two-mode networks, as a foundational tool for representing relationships between two distinct node sets, such as individuals and events. Crime analysts often work with these graph structures, so we learned in this tutorial how to construct these networks through adjacency matrices, transform them into network objects, and visualize them using the gplot() function from the sna package. We also reviewed several properties of these networks, such as calculating network density and degree centrality.
